Set Filter Cycle Time

Main Filtration

Filter cycles are set using a start time and a duration. Hours are adjusted in 1-hour increments, and minutes are adjusted in 15-minute increments. The end time is calculated and displayed automatically.

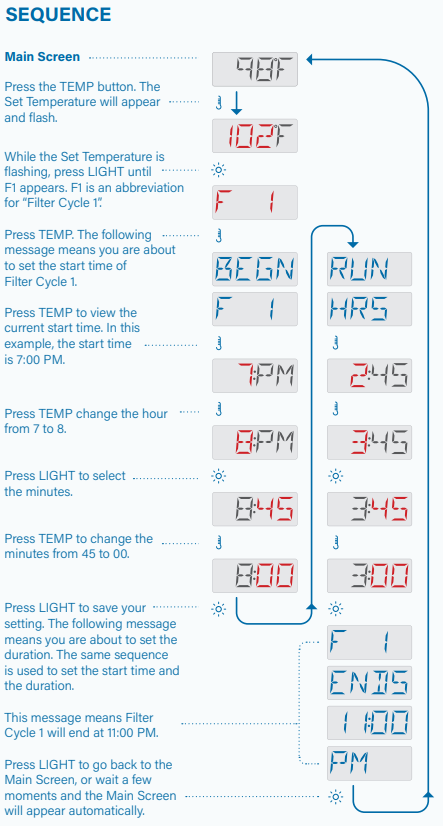

Filter Cycle 1

In this example, we will do the following:
• View the current start time
• View the duration
• Set the start time to 8:00 PM
• Set the duration to 3 hours
This means Filter Cycle 1 will end at 11:00 PM. Follow the same sequence to set Filter Cycle 1 for your spa. View the next page to set the start time and duration for Filter Cycle 2.

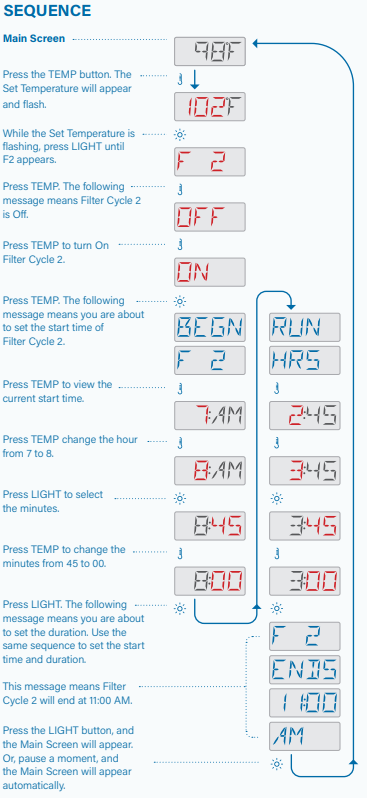

Filter Cycle 2


In this example, we will do the following:
• Turn On Filter Cycle 2
• View the current start time
• View the duration
• Set the start time to 8:00 AM
• Set the duration to 3 hours
This means Filter Cycle 2 will end at 11:00 AM. Follow the same sequence to set Filter Cycle 2 on your spa. Filter Cycle 2 is optional. It is Off by default on most control systems. However, you can turn it On if you like. It is possible to overlap Filter Cycle 1 and Filter Cycle 2, which will shorten overall filtration by the overlap amount.











Purge Cycles

The heater pump (view page 18) runs for the whole duration of the filter cycle. In order to maintain sanitary conditions, secondary Pumps and/or a Blower will purge water from their respective plumbing by running briefly at the beginning of each filter cycle. If Filter Cycle 1 is set for 24 hours, enabling Filter Cycle 2 will initiate a purge when Filter Cycle 2 is programmed to begin. On some systems, purge cycles may run several times a day, independent of the filter cycle
