SpaTouch Mini
User Guide
Table of Contents
Review
Functions
Chromazone
BBA 3
Clim8zone
CHANGE/VIEW SET TEMPERATURE

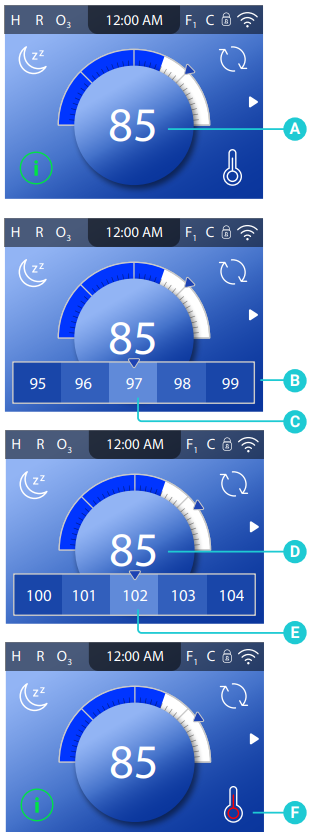

In this example, we will change the Set Temperature from 97 to 102 by using the following steps:
1 – Press the water temperature display/button (A) to view the temperature menu (B). The center box (C) indicates the current Set Temperature.
2 – Swipe the temperature menu until 102 is in the center box (E). If 102 appears but is not in the center box, tap 102 and it will move to the center box.
3 – Press the water temperature display/button (D) to exit the temperature menu.
How do I view the water temperature?
The water temperature is displayed on the Main screen (A).
How do I know when the water heater is On?

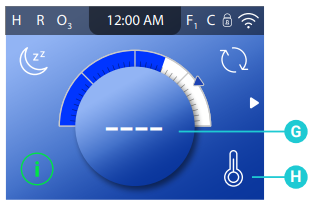

The center of the Heater Status icon turns red (F). The center flashes red when the heater is preparing to turn On. The center turns white (H) when the heater is Off.
What do the dashes mean (G)?
They indicate that the spa control has not checked the water temperature for approximately an hour. A pump needs to cycle water through the heater for the control system to check the water temperature. After water cycles through the heater for 1 minute, the dashes are replaced with the current water temperature (A). Whenever the control system is powered On, dashes appear (G) for one minute while a pump cycles water through the heater to check the current water temperature.
