CHANGE/VIEW SET TEMPERATURE

Follow these steps to change the Set Temperature:

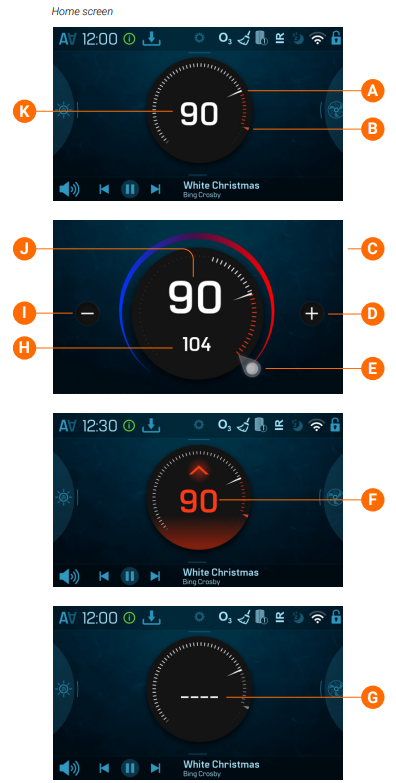

1 – Press the water temperature display/button (K) to view the temperature screen (C). This is the water temperature (J), and this is the set temperature (H).

2 – There are two ways to change the Set Temperature. One, press the plus and minus buttons (I)(D). Two, slide the Set Temperature icon (E).

3 – Press the water temperature display/button (J) to go back to the Home screen.

This represents the water temperature (A), and this represents the Set temperature (B) on the Home screen.

How do I know when the heater is On? The water temperature turns red (F).

What do the dashes mean (G)? They indicate that the spa control has not checked the water temperature for approximately one hour. A pump needs to cycle water through the heater for the control system to check the water temperature. After water cycles through the heater for 1 minute, the dashes are replaced with the current water temperature (K). Whenever the control system is powered On, dashes appear (G) for one minute while a pump cycles water through the heater to check the current water temperature.
